So you really want/need to get rid of that leaking, balky, cranky 365 and put in a cheap R17 Gordini or Fuego Transaxle? (continued)
by Michael Schlicht
We’ll start off this installment by reprinting the last paragraph of the previous month’s article which was accidentally cut-off.
From the preceding discussion it would seem obvious that the smart thing to do would be to get two usable transaxles and build one good one. I recommend this, however I have never seen a used R17 transaxle that had any extreme wear except on the 5th gear thrust faces and the needle roller bearing interface. It is common for the 1st and 2nd gear synchro teeth to show some wear. I have seen catastrophic accident damage that was very obvious as in broken ring gear teeth (No Martha, they can’t be welded back on). If you do decide to use parts from two transaxles be aware that you cannot mix up the ring and pinion from different transaxles unless they are new! It is permissible to mix gear sets but be certain that the gear tooth counts are the same and it came from the same gear location. I have seen the case where the gears came from different transaxle versions and where one tooth count different. The gears would go together but they would be noisy and probably fail if run together!
The shift linkage and rear cover mods:

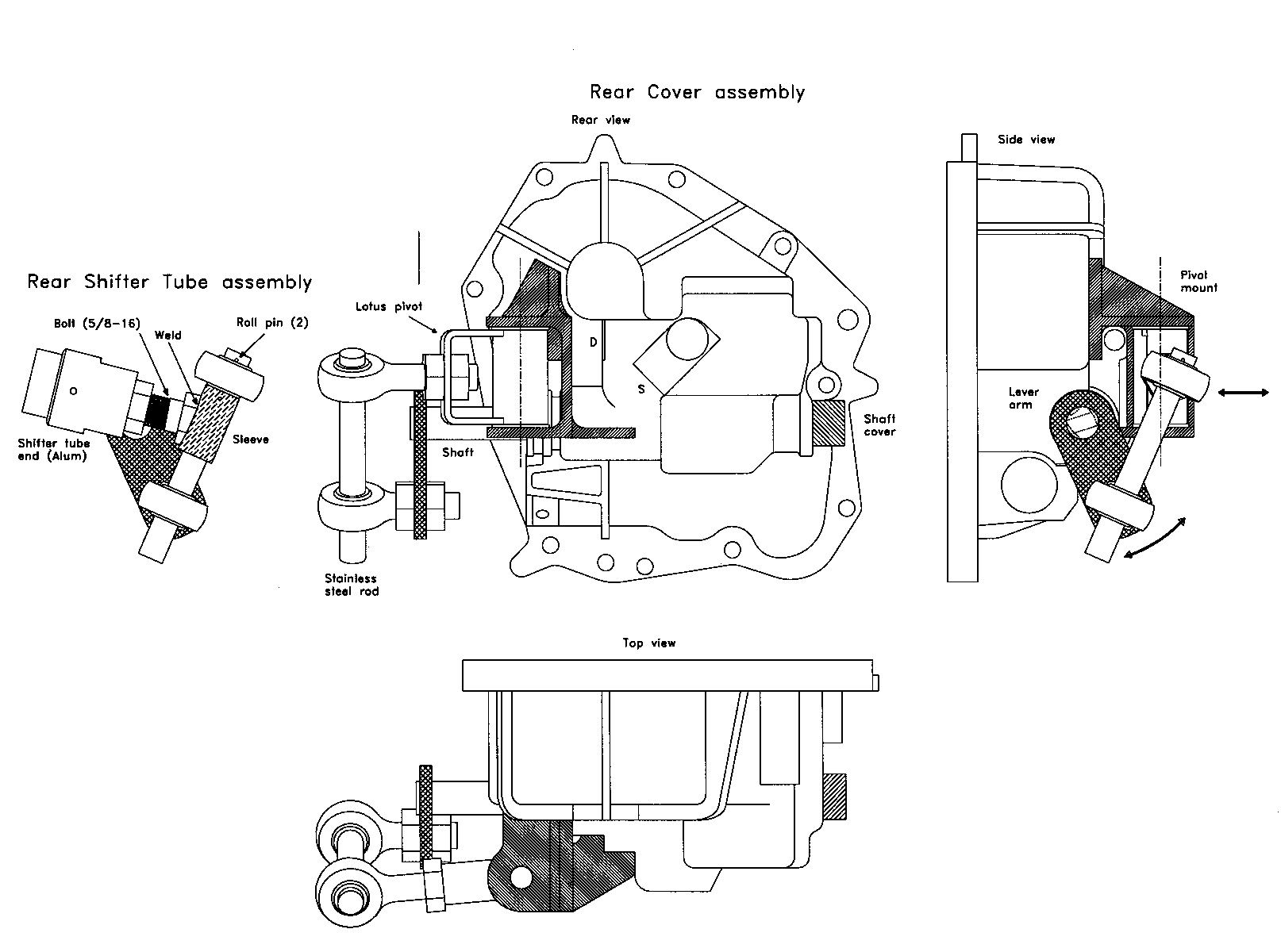

As I stated before, most of the work involved in a 395 conversion revolves around the rear cover. The rear cover and shift linkage mod's should be done before the chassis mod's. This way the shift mechanism can be done correctly and not have to be worked around the rear chassis mod's! A brief description of how the linkage works will help with the understanding of what needs to be done. When you push the gear lever forward the front linkage tube (down in the chassis tunnel) moves backwards. This causes the rear linkage tube to move backwards and the shift lever arm (gearbox actuator) to pivot. The selector (internal shift lever) inside the rear cover then pushes the shift fork shaft forward to engage a gear (1st, 3rd or 5th). When you move the gear lever to the left (driver side) the linkage tubes rotate counter clockwise. At the rear of the transaxle there is a pivot which causes the shift lever arm to move to the right (refer to the drawings).
Unlike the stock rear shifter pivot setup I prefer to take all of the weight off of the shifter shaft (gearbox actuator) to eliminate bushing wear. The required pivot is then designed into the rear cover using one of the stock Lotus pivots and a rod end. This setup is very easy to disconnect and requires no adjustments. My setup also has the slight advantage of biasing the shift pattern such that it allows slightly more gear lever travel before contacting the sides of the ball joint that is mounted in the chassis under the gear lever (reverse and 5th gears in particular). This also translates into slightly less angular motion of the linkage tubes around the engine. It turns out that this reduction in angular motion is designed into the "stock 336 setup that uses the hole in the top of the transaxle case for the pivot point. In the end both systems work about the same with the stock setup being slightly simpler. The stock setup is a little sloppier due to the rubber bushings in the pivot (this can be redone by adding another rod end with a bracket on the transaxle). My setup has a sliding joint that will eventually get sloppy but in 18 years of use I have replaced the rod end only once.
To modify the shift linkage you only need to replace the rear linkage tube but it is a good idea to remove the whole system from the car as you will probably find that it needs to be rebuilt anyway (this ill require removing the engine). I made my linkage tubes (both front and rear) from 1.25" diameter (.125" wall) 6061-T6 Alum. This saved about 12lb of weight! Thinwall .75" diameter Chrome-molly tubing can also be used to save weight. It is a little more expensive and will need to be painted or plated. The tubes will need to be bent to snake through the chassis and around the engine. I found that the stock bends where not optimum so spend a little time here and get it right. Don't be surprised if you need to do the front tube twice, I did! Have a shop with a real mandrel tubing bender do it (one that will not kink the tubing)! Do not use a cheap exhaust pipe bender as it will collapse the inside of the bend and weaken the tubing. A bend in the Aluminum tubing can be redone slightly if you don't get it quite right but the Chrome-molly tubing usually cannot as it work hardens to much (you can always bend it someplace else). The stock U-joint that is part of the central pivot (mounted on the side of the bell-housing) has a tendency to fail. I replaced it with an aircraft one (1.25" diam) that comes with a rubber boot. These can now be found at most racing shops. Threaded ends (1/2" diam right and left hand) will have to be made for this. Don't be tempted to use anything smaller than 1" diameter. I have seen several "high tech" small diameter (3/4") ones quickly fail on Europas.
The work on the rear cover breaks down as follows:

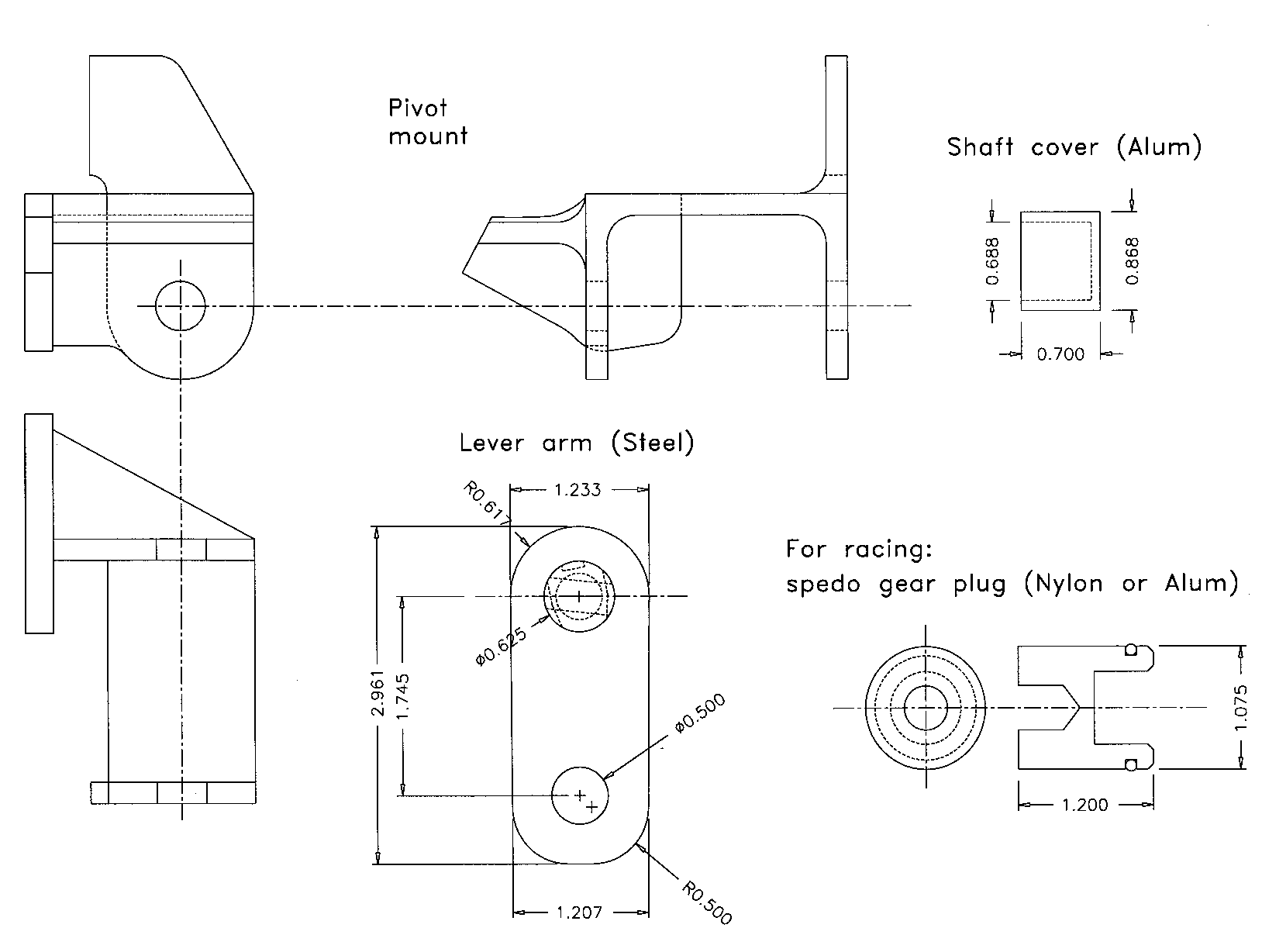

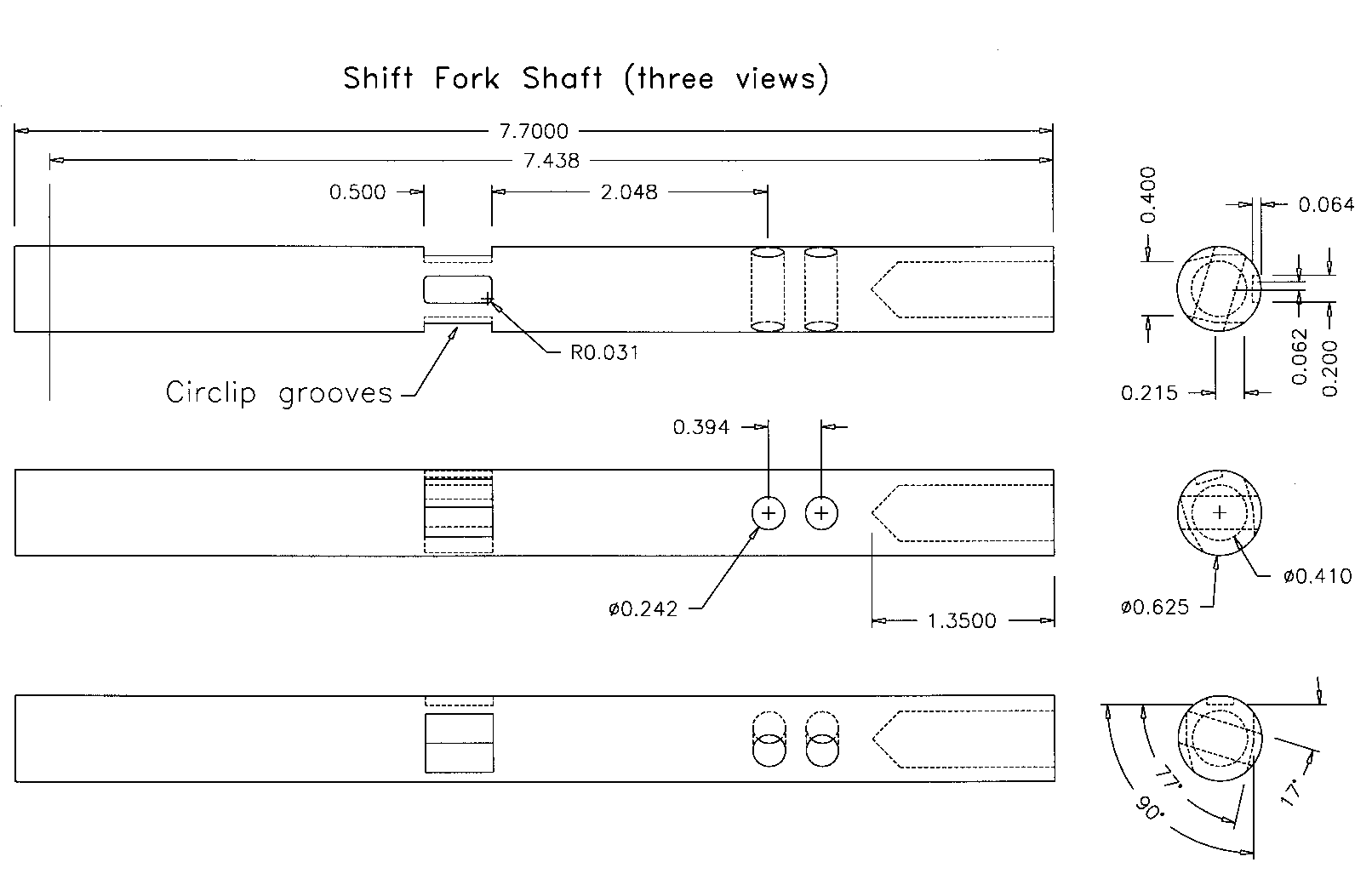

Moving the shifter from the right side to the left side: This is best done by making a new shifter shaft with a welded on shift lever arm (see drawing 1). The funny looking slots on the shaft (3) are for the circlip that is part of the spring bias setup. The circlip must be able to slide on the shaft. If this looks complex there is a good reason. I found out the hard way that the stock setup with a deep machined groove creates a stress riser and the shaft will eventually break. I had the embarrassing experience of driving a Lotus that was accused of having a unfair advantage, shedding parts on the race track! The shaft broke in half and promptly fell off the car just as I shifted into 2nd. Notice the selector held on the shifter shaft by two grove pins. The holes in the shaft need to be made as specified if you don't want the pins to fall out in use. I have found that most transaxles have the holes centered in the shaft but some don't. If you are careful you can use the selector as a guide for drilling the holes but be careful that you don't inadvertently ream out the hole in the selector (I Locktite the fork onto the shaft, then I drill using a drill press). They are easy to put in and a real pain to take out! Use Locktite when putting the pins in. The angle orientation between the grove pin holes and the circlip grooves is important, don't change it! Do not weld the lever in place! This should be the absolute last thing you do! If the lever is a light press fit on the shaft, it will be easy to align the shift linkages to get the gear lever centered correctly. Once you are happy with the alignment then mark the shaft and lever and have them tack welded together (I did this by carefully removing the rear cover and taking it to a welder). Contrary to popular belief the gear lever should not be straight up and down. It should be slightly biased to the rear and to the right. Put the cover back on the transaxle and play with the gear lever and make sure that you can get all of the gears. Then completely welded on both sides of the lever. You will need to do something about the air-lock created between the shaft and the shaft end cover. I bored a hole in the end of the shaft and then drilled 2 small holes in the side of the shaft. Next I drilled 3 1/16" holes through the cover next to the shaft bushing, but such that they will not be covered up when the shaft cover is pressed on. This allows a controlled bleed and dampens the side motion of the shifter a little. An easier way is to just machine a 0.035" deep flat on the last 1.5" of the shaft. The 395 comes with a nice rubber cover (boot) for the shift fork shaft to keep dirt out of the bushing. You will need to put a 0.5" hole in the end (so the new shaft will slide through it) and pop it back on the cover. A leather hole punch works nicely. The shifter shaft cover should be a light press fit. Use RTV to seal it as it will be below the oil line. For racing where you don’t have a speedometer the drawings show a plug you can use. This uses an O-ring to seal it. You cn use the standard locking bolt or if the O-ring is a slightly to tight interference fit, the plug will not come out by itself.
Making the fore/aft pivot mount: There are many ways to do this. This design locates the pivot such that there is about 10 degrees of rearward angle when the transaxle is in neutral. This also provides clearance for the speedometer cable. I recommend having the mount machined out of one piece of 6061 Alum. This is then welded on the rear cover as shown.
The vertical link: The vertical link is made from a 1/2" diameter piece of 314 Stainless steel rod. This is a hard tuff material that won't rust. Do not be tempted to use non-Stainless Steel! There are several other Stainless alloys that will work but watch out, some are relatively soft and will bend with time. It is possible to weld the 5/8" bolt directly to the Stainless steel rod, depending on the alloy but the sleeve is a better way to distribute the load so that the junction between the bolt and rod won't fail. A 1/16" roll pin is used to attach the sleeve to the rod. There is another roll pin just above the rod-end to keep it in place.
The center pivot (bell-housing): The stock pivot mount is just fine. They do have a tendency to get a groove worn into the bottom bracket. If this is more than half way through, replace the mount. If there is any groove at all it means that the pivot has collapsed and the innards are junk. I recommend fixing it by replacing the old rubber with RTV with the pivot ends molded in place. Not only is this cheaper than buying a new one but it provides much better engine vibration damping! I will show this in more detail in the next article.
The linkage tubes: There is a pivot joint at the bottom of the gear lever. This has a tendency to wear and allow a lot of slop in the rotation of the linkage tubes. I made a new one out of Steel with a Teflon "Hat" type bushing. The stock setup has a shoulder bolt that limits the amount of clamping force (travel) which means that when the pivot gets sloppy you usually can't adjust it! I retained the shoulder bolt but designed it with a shim under it so that the pivot can be adjusted by thinning the shim. You can also adjust it by adding shims to the "Hat". Since the front linkage tube is made from Alum the pivot end is held in place with 3 screws. The rear of the front linkage tube has a welded on threaded Alum end. The rear linkage tube has welded on threaded Alum ends on both ends. Be aware that the center U-joint has a left and a right hand threaded shaft that must thread into the linkage tubes. Don't get them mixed up. As far as the tubing bends go one thing to watch out for is adequate clearance between the rear linkage tube and the driveshaft when the rear wheel is as high as it will go, in all gears!
Other stuff: The 395 comes with several position sensor switches. These where used to tell which gear the transaxle is in, which is useless on the Lotus. They can be left in place or removed, but the holes must be plugged. I modified them by cutting the ends off and welding a washer on the end so that they can still be threaded on but don’t stick out much. I also retained the internal ball and spring which adds a little bit more "detent" to the transaxle. I have tried to obtain bolts that will fit but this is a Metric electrical thread which is not standard. If anybody has a source for this size bolt, PLEASE let me know! There are two sensors on the transaxle rear cover. I cut the mount for the lower sensor (for neutral) off and welded a small plate over the hole. The linkage tubes are assembled (locked in place) using 3/16" roll pins. There are 5 roll pins used, 4 on the center pivot and 1 on the rear linkage tub end (rear shifter tube assembly). First Locktite the linkage tubes onto the threaded shafts, then when you are satisfied that they are correct, drill holes for the roll pins. I have a lock-nut on the rear shifter tube assembly which makes the initial adjustment much easier, but this is not adequate for the long term. Put a roll pin in it as shown.
