Dec 17, 2012
The latest track only weapon arrived in the US on Friday, December 14, 2012 at the McCarran International Airport in Las Vegas!!!
The Exige S V6 Cup Car USA
This new track weapon weighs 2381 pounds and is powered by a 3.5L Toyota DOHC V6 with a Harrop HTV 132 Supercharger utlizing Eaton TVS technology.
The engine is good for 345 HP at 7,000 rpm and 295 ft-lb of torque at 4,500 rpm. 6.9 lbs per HP power to weight.
The engine is mated to a 6 speed transaxle with a electronic locking differential. The engine sump is baffled to handle the cornering side
loads and the exhaust flows through a Sport Exhaust system with a bypass.
Safety equipment includes a full FIA certified roll cage, FIA Fire System, 6 point harness and a HANS compatible seat.
Brakes and suspension consist of 4-pot AP calipers that clamp onto ventilated cross drilled 2-piece rotors. Suspension has forged aluminum
double wishbones with sway bars, Eibach springs and Bilstein 2-way adjustable dampers.
Electronic driving assists include the Lotus Dynamic Performance Management (DPM) system that has 4 modes - Touring, Sport, Race and DPM Off. The
DPM system controls brake assistance, electronic brake distribution, corner brake control, torque control, electronic locking differential and electronic stability control.
Performance:
0-62 (100kph): 3.8 seconds
0-100 (160kph): 7.9 seconds
Only 10 of these cars will be sold through select Lotus dealers.
The Exige S V6 Cup Car was debuted at the Lotus Cup USA finale at Spring Mountain Raceway in Pahrump NV the weekend of Dec 15-16th.

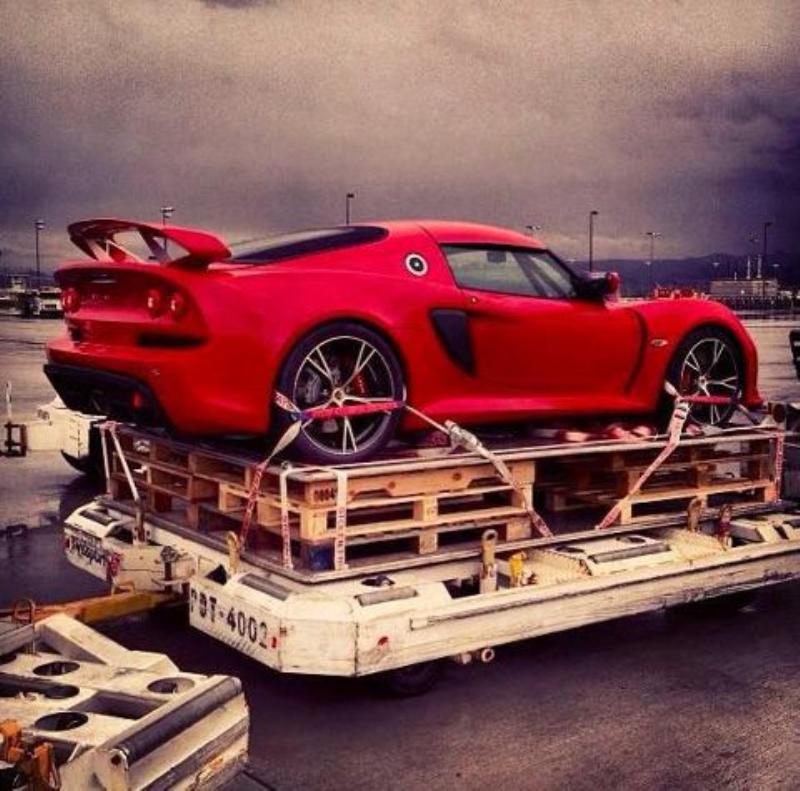

Arrival at the airport
![](./exigecup/exigecup1.jpg) |

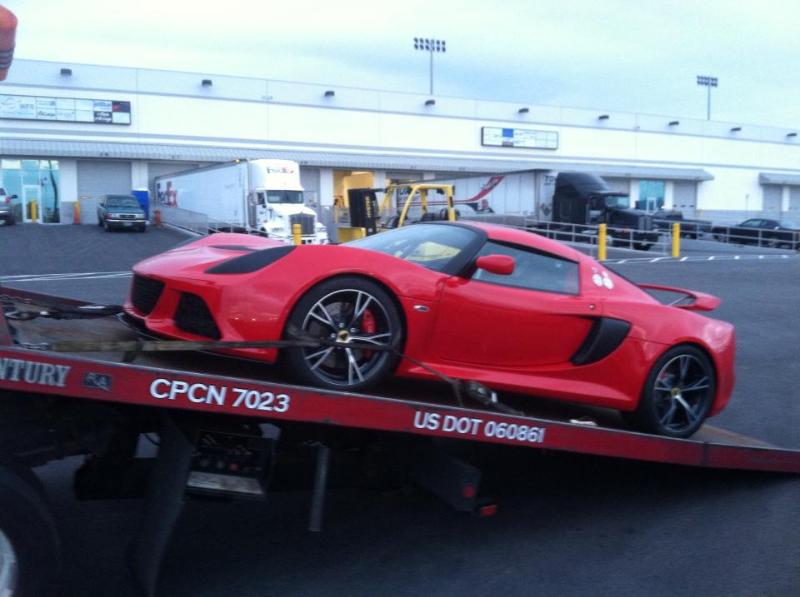

Getting loaded to go to Spring Mountain
![](./exigecup/exigecup2.jpg) |

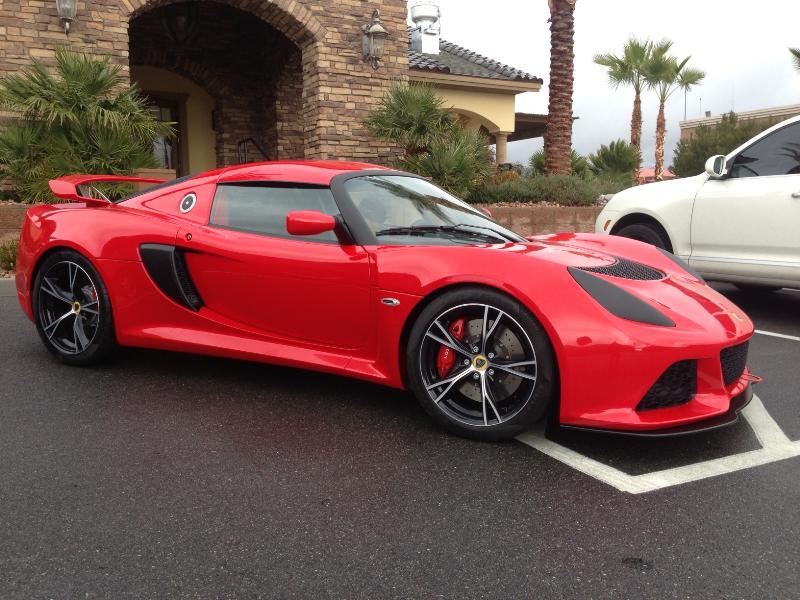

Exige V6 Cup Car
![](./exigecup/exigecup3.jpg) |

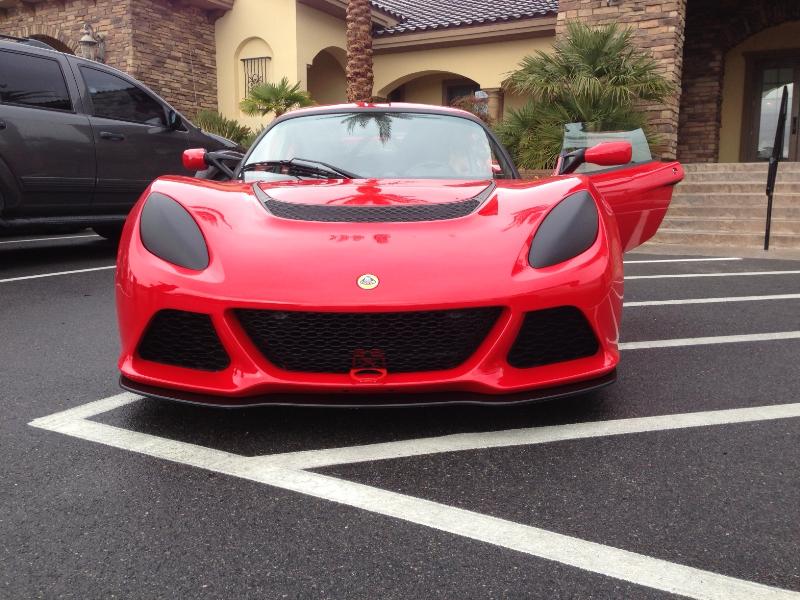

Exige V6 Cup Car - front
![](./exigecup/exigecup4.jpg) |

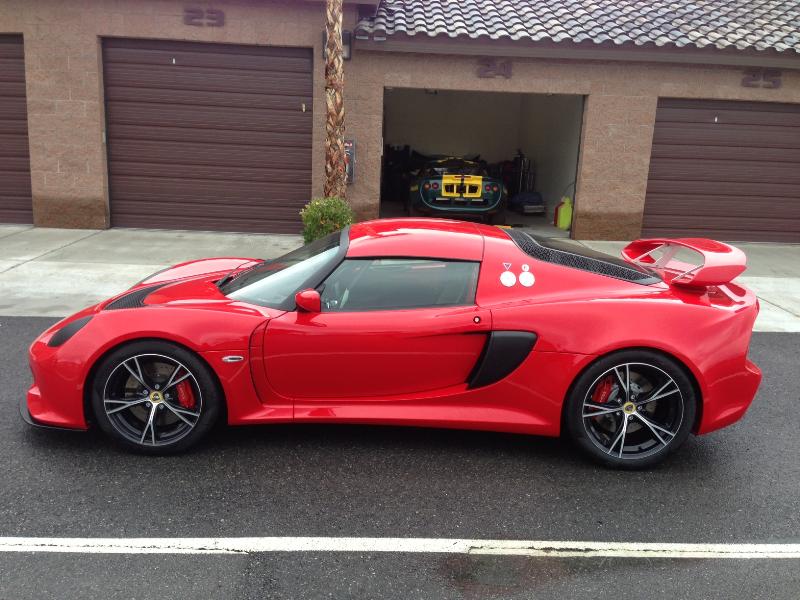

Exige V6 Cup Car - side
![](./exigecup/exigecup5.jpg) |

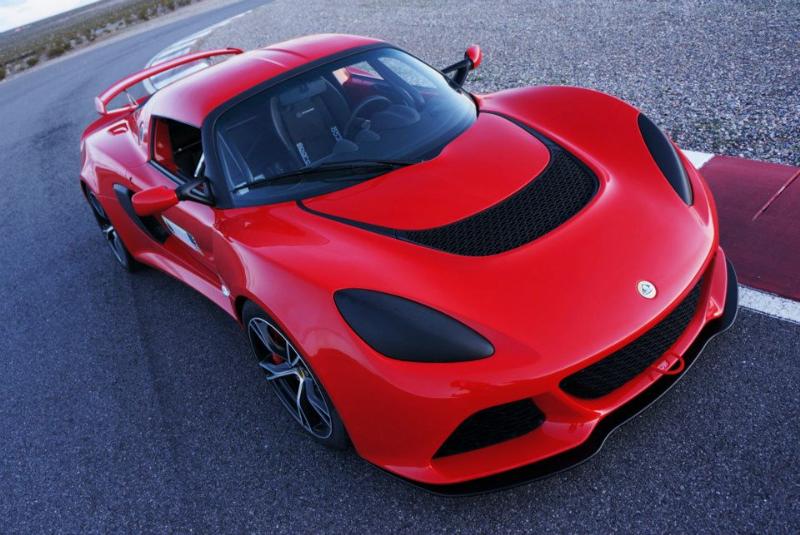

Exige V6 Cup Car
![](./exigecup/exigecup6.jpg) |
Pirelli tire, wheel & AP brakes
![](./exigecup/exigecup7.jpg) |

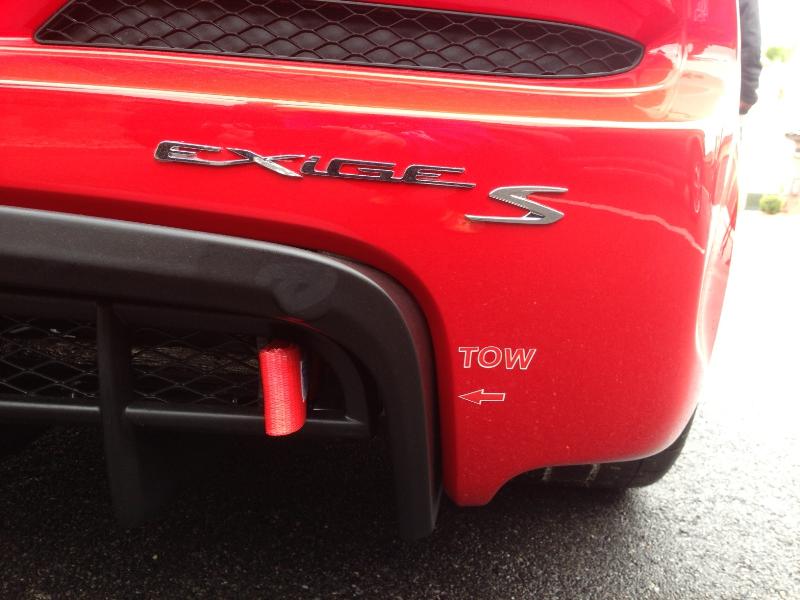

Rear towing strap
![](./exigecup/exigecup8.jpg) |

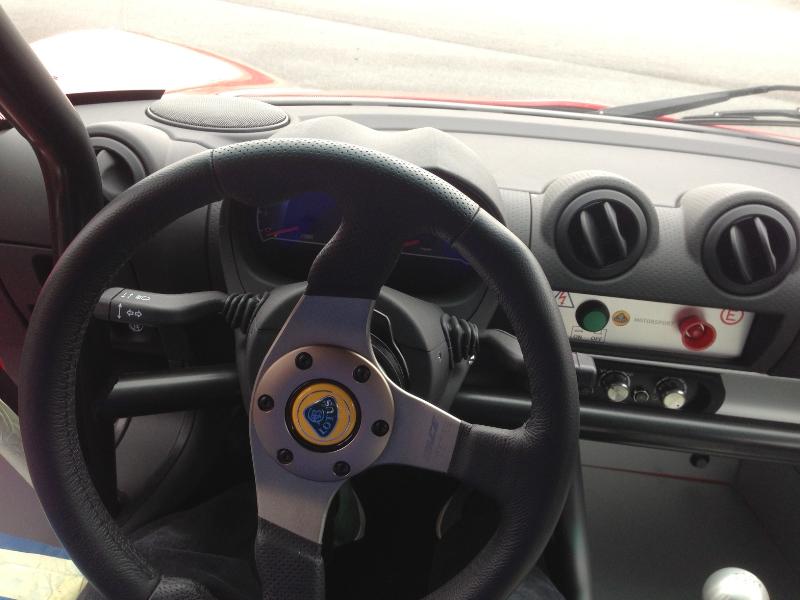

The cockpit
![](./exigecup/exigecup9.jpg) |

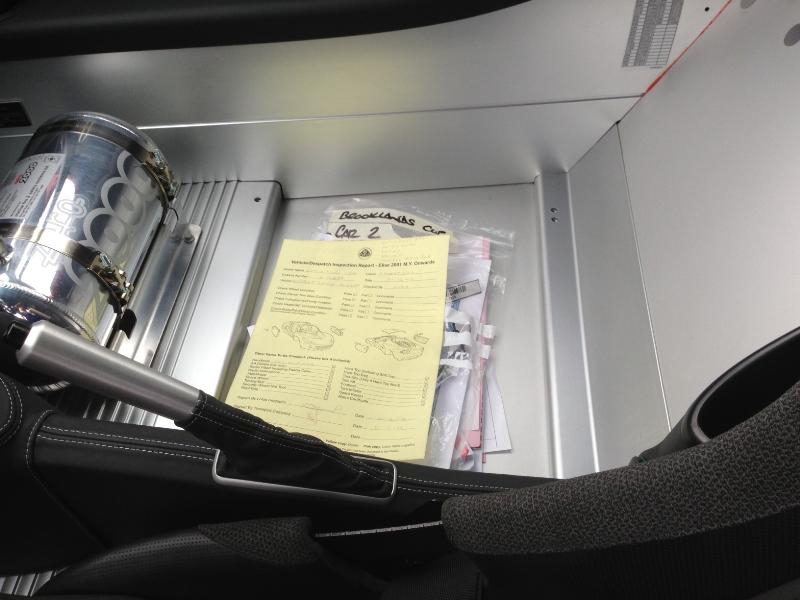

Final Inspection Sheet
![](./exigecup/exigecup10.jpg) |

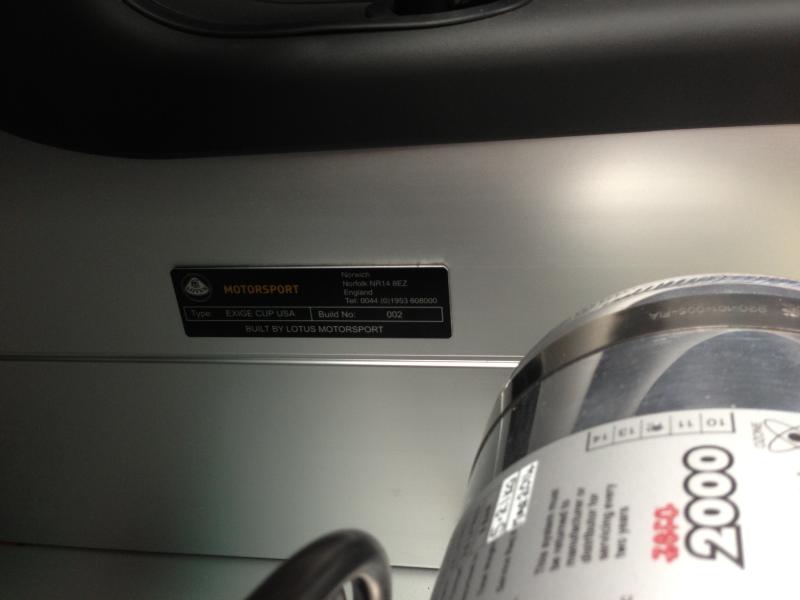

Chassis Placard
![](./exigecup/exigecup11.jpg) |
The dash
![](./exigecup/exigecup12.jpg) |

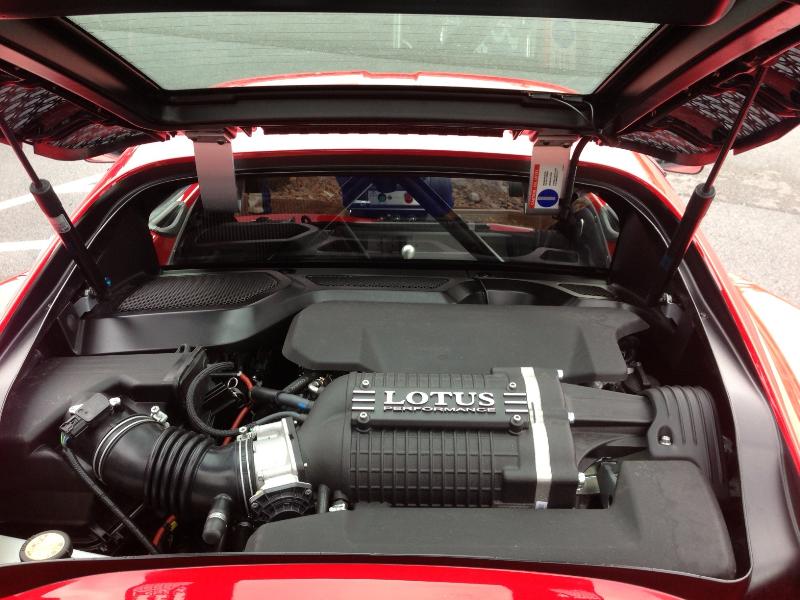

Engine bay
![](./exigecup/exigecup13.jpg) |

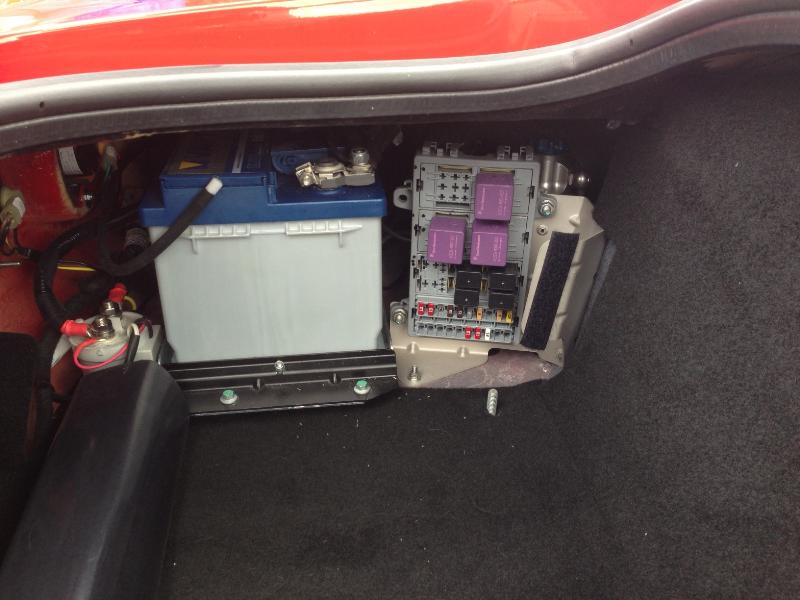

Battery & Relays
![](./exigecup/exigecup14.jpg) |

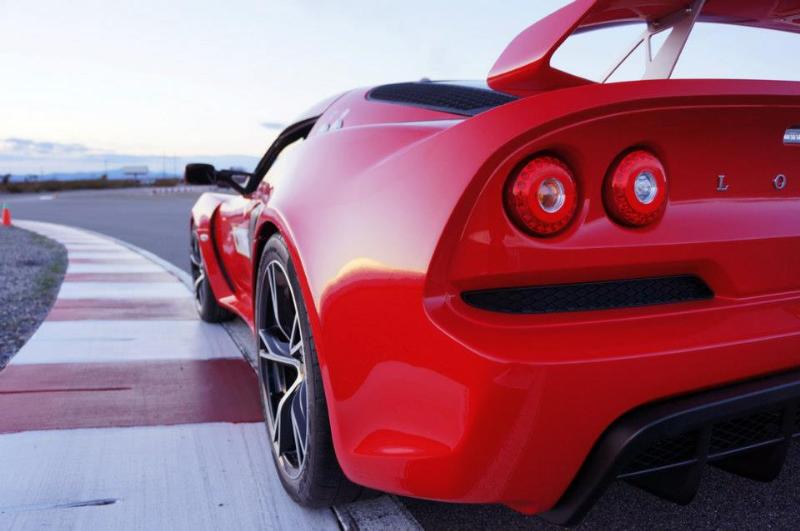

Exige V6 Cup Car
![](./exigecup/exigecup15.jpg) |
